Data Engineering Primer

AI is so hot right now

Data Engineers are Better

Data Engineer

Data engineers work in a variety of settings to build systems that collect, manage, and convert raw data into usable information for data scientists and business analysts to interpret. Their ultimate goal is to make data accessible so that organizations can use it to evaluate and optimize their performance. - Coursera

A popular military proverb goes "amateurs talk tactics, professionals talk logistics". The feverish interest in "AI" lends itself to a similar observation: "amateurs talk AI, professionals talk data engineering". Like tactics and pitched battles, AI is the flashy end result of months and years of deliberate logistical preparation. This workshop focuses on introducing several key concepts for Python programmers to be excellent data engineers that can deliver value and save costs.

A very summarized overview of modern data engineering

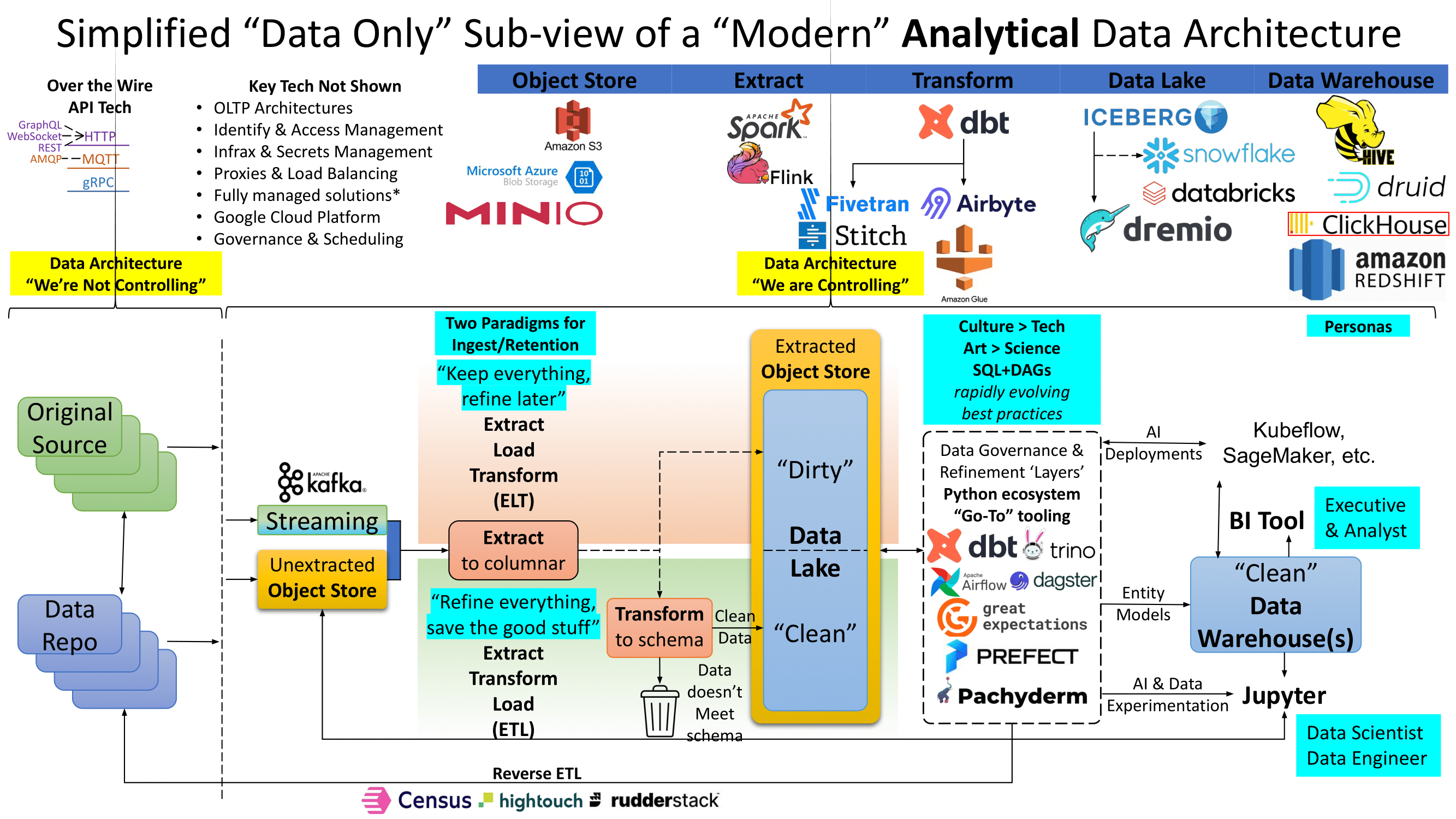

Data Engineering Landscape

  1. Extract (aka "Map"): Open the source data into memory or working swap disc
  2. Transform (aka "Shuffle and Reduce"): Apply expectations of data schema, "enrich" with additional context or tooling (AI), and (potentially) ignore or summarize data to reduce volume (cost) and maximize value
  3. Load: Store the result

ETL vs ELT

But wait, what is all this about ETL vs ELT?

Extract, Transform, Load
ETL fundamentally assumed the organization knows a priori all questions it could possibly want to ask of its data or has significant budget constraints it must meet. The ETL was a requirement in the 90s and early 2000s when computers were running databases and simply couldn't store GBs, TBs, or PBs of data... much more in a cost effective manner.

Extract, Load, Transform
ELT has gained popularity for two reasons. First, magnetic disc storage cost became neglible and technologically easy to maintain in great quantities. A small business can easily maintain half a petabyte of storage in one 42U rack for the cost of a new economy car. Second, large business realized they were losing agility and spending a tremendous amount of time and manpower trying to enforce data schemas in each business unit. The ELT approach instead shifts to robust data engineering tools and teams that automate data quality checks and transformation pipelines to answer specific questions or use cases that clearly provide value. If a business unit changes their data, the fault is immediately detected. Data engineers are empowered to quickly understand what changed and apply an update to affected pipelines.

Types of Data

  1. Unstructured: Requires manual human review or specialized processing tools to extract quantifiable data. Powerpoints, PDFs, images, sound recordings, etc.
  2. Semi-Structured: Well defined but highly flexible data structures or file formats. JSON, XML, HTML, Excel Spreadsheet, etc.
  3. Structured: Well defined and inflexible data structures with fixed data types. SQL Database, CSV, parquet, Pandas DataFrame, Numpy NDArray, etc.

In general, data engineers have two goals. First, convert unstructured and semi- structured data into structured data according to business rules. Second, seek efficiencies (in both cost and operational agility) by refining structured data into "high quality" subsets or summaries ready for analysts, business intelligence (BI) tools, and AI workflows.

Types of "big data" storage technology

Online Analytical Processing (OLAP)

  • Data Lake: Files on a hard drive. Files could be unstructured, semi-structured, or structured. Unlikely to provide full support for SQL queries over all data stored. Optimized for create operations.
  • Data Warehouse: Structured data files partially or fully in memory (RAM). Provides a SQL interface. Optimized for create and read operations.
  • Data Lakehouse: A data lake that provides a SQL interface. Operationally slower but more cost-effective than a data warehouse. Optimized for create and read operations.

Online Transactional Processing (OLTP)
- Database: Transactional data storage optimized for create, read, update, and delete operations. Generally not intended for large amounts of data unless implemented using a "NoSQL" technology.
